CDI-E102 serisi Ekonomik-Tip İnverter
- AC 1PH 200V-240V, 0.4-2.2kW
- AC 3PH 200V-240V, 0.4-2.2kW
- AC 3PH 340V-420V, 0.75-630kW
Genel tanıtım
CDI-E102 serisi Ekonomik-Tip İnverter
Genel tanıtım
Teknik özellikler
Aksesuarlar
Uygulamalar
CDI-E102 serisi Ekonomik-Tip İnverter | |||||||||
Frekans inverteri Referans kod | Nominal Kapasite (kVA) | Nominal Giriş Akım (A) | Nominal Çıkış Akım (A) | Motor Güç (kW) | |||||
S2 (Tek Faz 220V, 50/60Hz) (Dahili Frenleme Ünitesi) | |||||||||

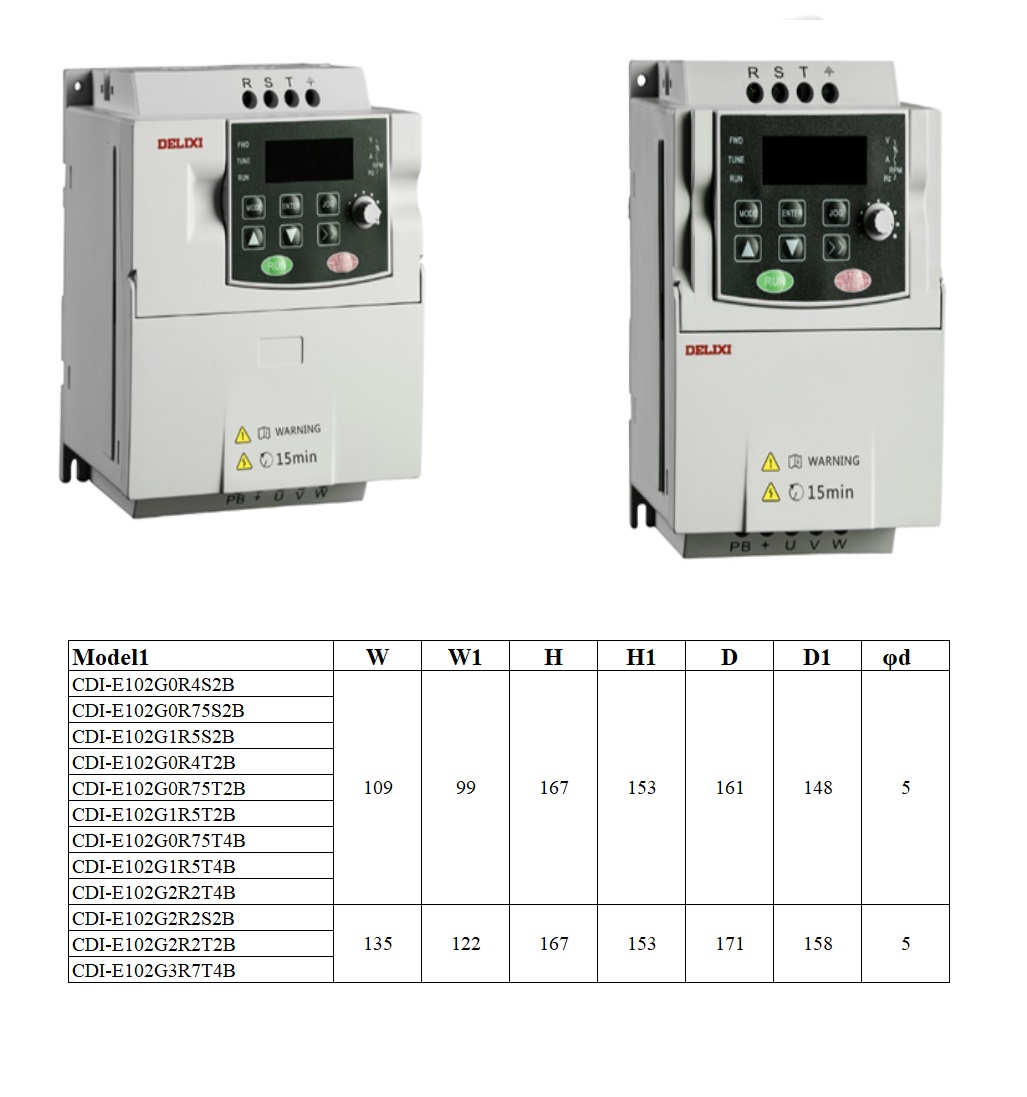

CDI-E102G0R4S2B | 0,8 | 5,0 | 2,3 | 0,4 | |||||
CDI-E102G0R75S2B | 1,5 | 9 | 4,0 | 0,75 | |||||
CDI-E102G1R5S2B | 2,7 | 15,7 | 7,0 | 1,5 | |||||
CDI-E102G2R2S2B | 3,8 | 27 | 10,0 | 2,2 | |||||
T2 (Üç Faz 220V, 50/60Hz) (Dahili Frenleme Ünitesi) | |||||||||
CDI-E102G0R4T2B | 0,8 | 2,6 | 2,3 | 0,4 | |||||
CDI-E102G0R75T2B | 1,5 | 6 | 4,0 | 0,75 | |||||
CDI-E102G1R5T2B | 2,7 | 8,8 | 7,0 | 1,5 | |||||
CDI-E102G2R2T2B | 3,8 | 12,5 | 10,0 | 2,2 | |||||
|
|||||||||
CDI-E102G0R75T4B | 1,5 | 4,4 | 3,0 | 0,75 | |||||
CDI-E102G1R5T4B | 3,0 | 6,0 | 4,5 | 1,5 | |||||
CDI-E102G2R2T4B | 4,0 | 6,8 | 6,0 | 2,2 | |||||
CDI-E102G3R7T4B | 5,9 | 11 | 9,5 | 3,7 | |||||

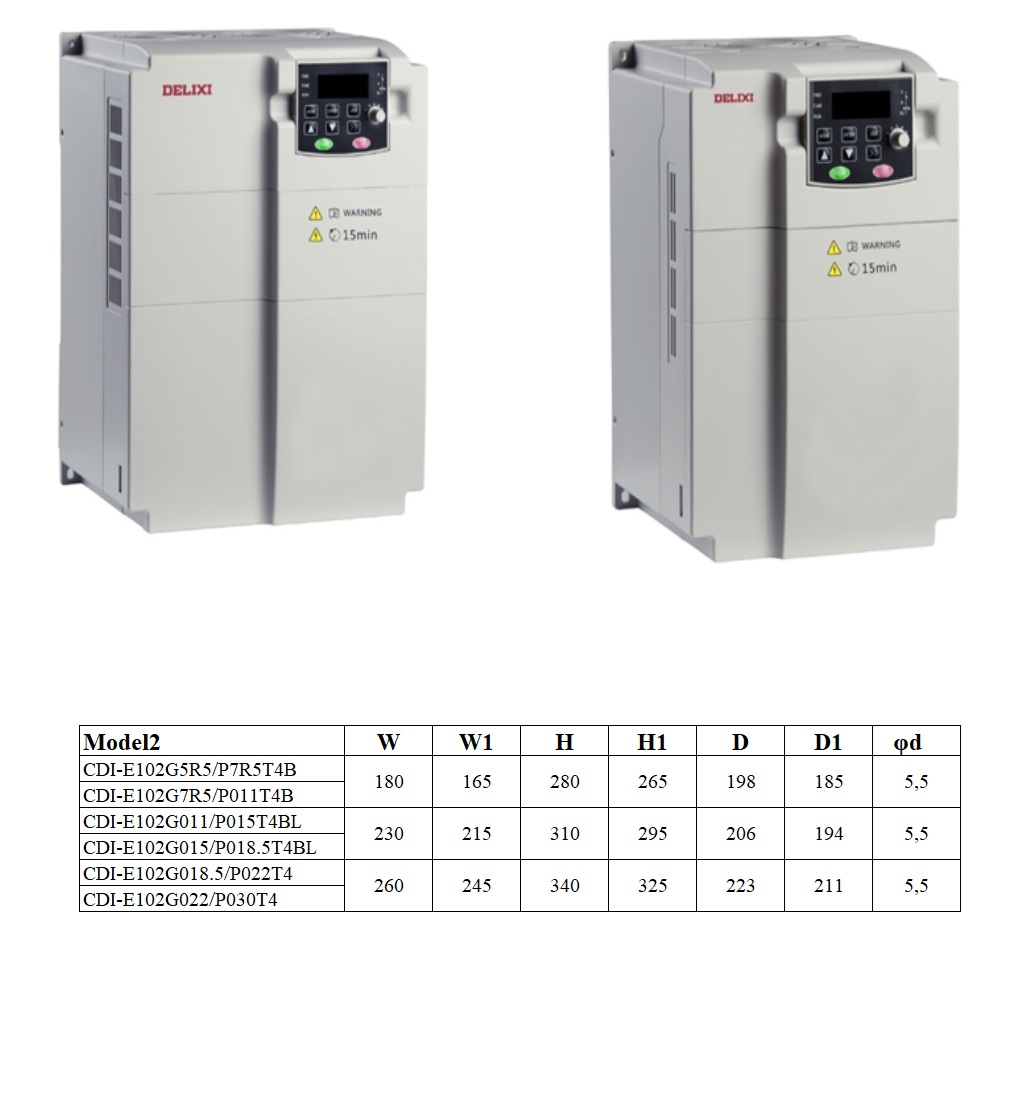

CDI-E102G5R5/P7R5T4B | 8.5/11 | 15.5/20.5 | 13/17 | 5.5/7.5 | |||||
CDI-E102G7R5/P011T4B | 11/17 | 20.5/26 | 17/25 | 7.5/11 | |||||
CDI-E102G011/P015T4BL | 17/21 | 26/35 | 25/32 | 11/15 | |||||
CDI-E102G015/P018.5T4BL | 21/24 | 35/38.5 | 32/37 | 15/18.5 | |||||
CDI-E102G018.5/P022T4 | 24/30 | 38.5/46.5 | 37/45 | 18.5/22 | |||||
CDI-E102G022/P030T4 | 30/40 | 46.5/62 | 45/60 | 22/30 | |||||

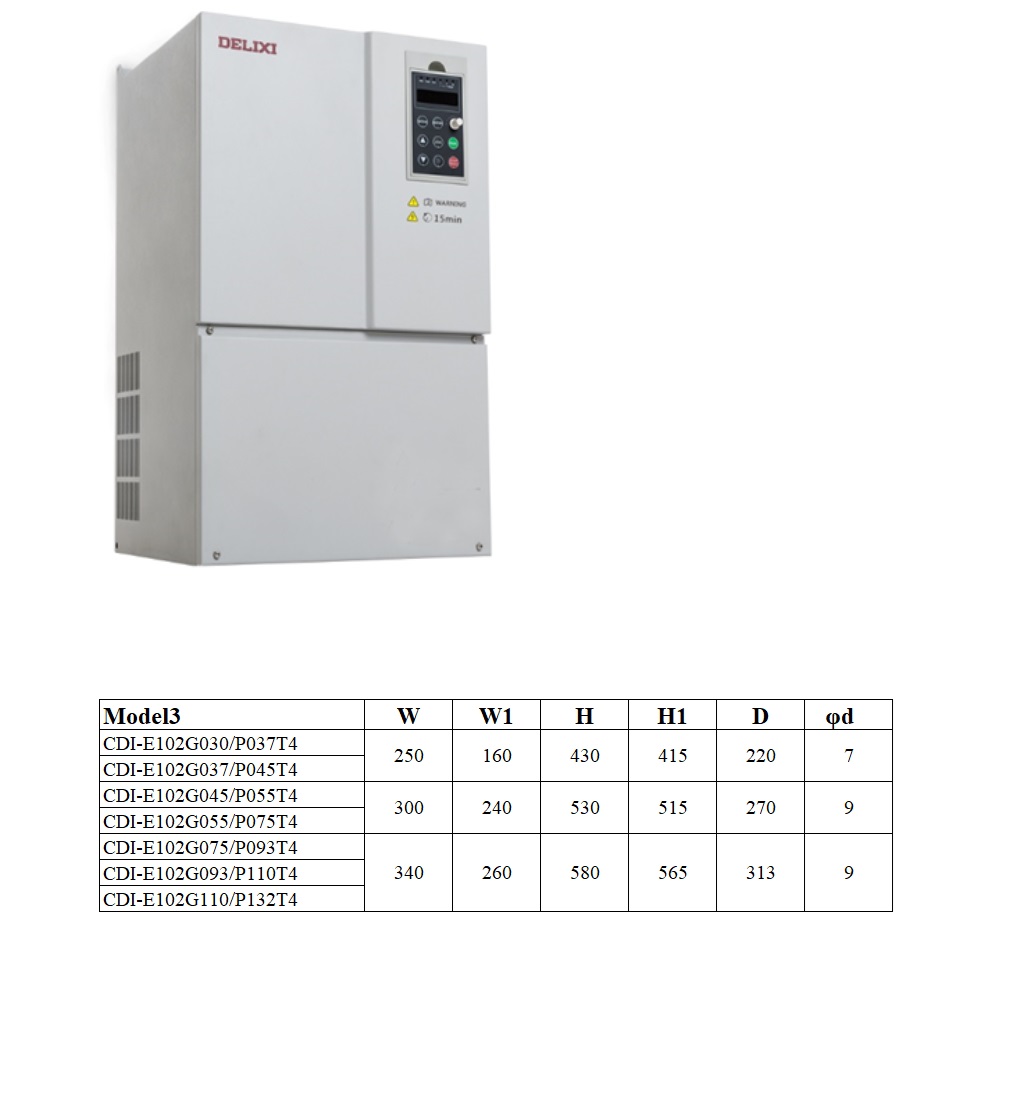

CDI-E102G030/P037T4 | 40/50 | 62/76 | 60/75 | 30/37 | |||||
CDI-E102G037/P045T4 | 50/60 | 76/92 | 75/90 | 37/45 | |||||
CDI-E102G045/P055T4 | 60/72 | 92/113 | 90/110 | 45/55 | |||||
CDI-E102G055/P075T4 | 72/100 | 113/157 | 110/152 | 55/75 | |||||
CDI-E102G075/P093T4 | 100/116 | 157/180 | 152/176 | 75/93 | |||||
CDI-E102G093/P110T4 | 116/138 | 180/214 | 176/210 | 93/110 | |||||
CDI-E102G110/P132T4 | 138/167 | 214/256 | 210/253 | 110/132 | |||||

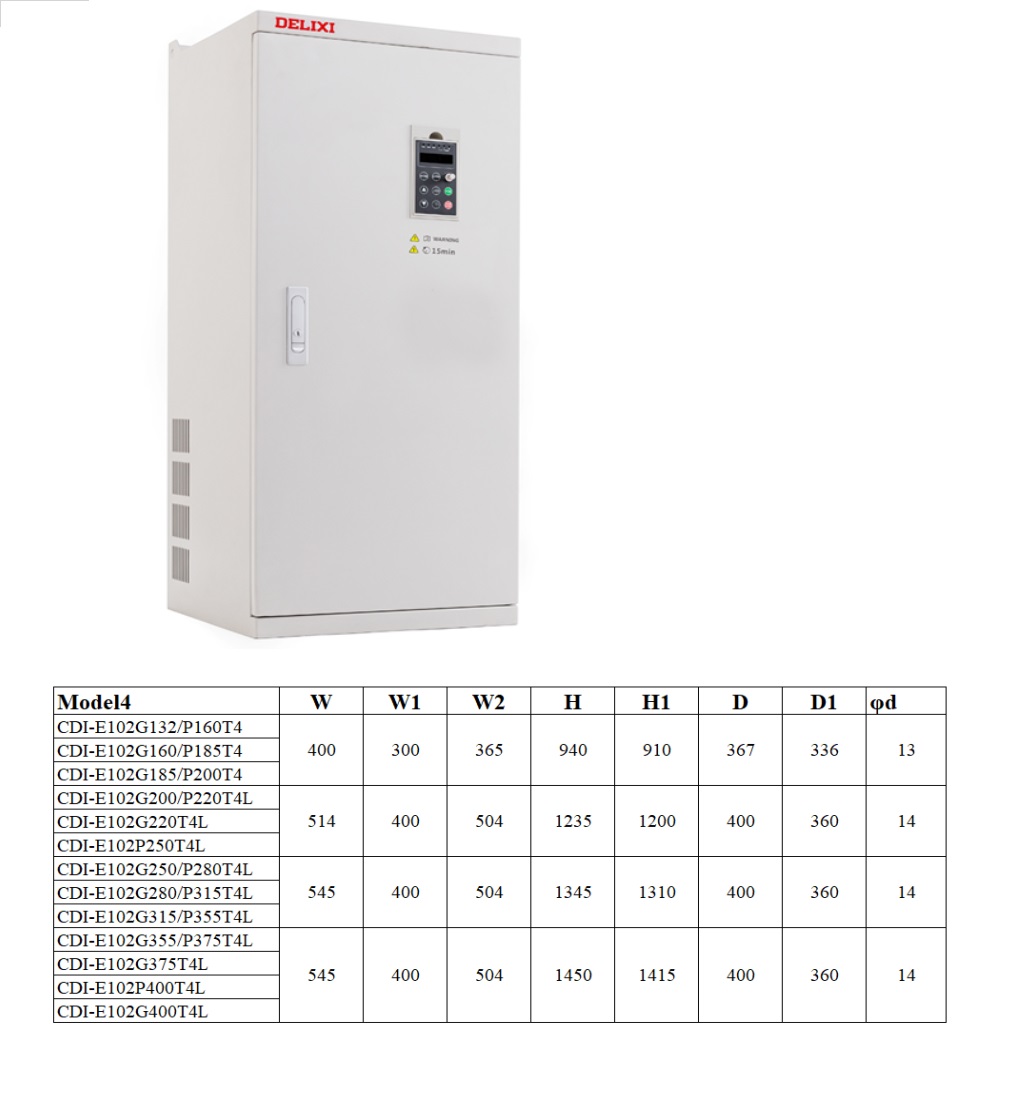

CDI-E102G132/P160T4 | 167/200 | 256/305 | 253/300 | 132/160 | |||||
CDI-E102G160/P185T4 | 200/224 | 305/344 | 300/340 | 160/185 | |||||
CDI-E102G185/P200T4 | 224/250 | 344/383 | 340/380 | 182/200 | |||||
CDI-E102G200/P220T4L | 250/276 | 383/425 | 380/420 | 200/220 | |||||
CDI-E102G220T4L | 276 | 425 | 420 | 220 | |||||
CDI-E102P250T4L | 316 | 484 | 480 | 250 | |||||
CDI-E102G250/P280T4L | 316/355 | 484/543 | 480/540 | 250/280 | |||||
CDI-E102G280/P315T4L | 355/395 | 543/605 | 540/600 | 280/315 | |||||
CDI-E102G315/P355T4L | 395/467 | 605/714 | 600/680 | 315/355 | |||||
CDI-E102G355/P375T4L | 447/467 | 683/714 | 680/710 | 355/375 | |||||
CDI-E102G375T4L | 467 | 714 | 710 | 375 | |||||
CDI-E102P400T4L | 494 | 753 | 750 | 400 | |||||
CDI-E102G400T4L | 494 | 753 | 750 | 400 | |||||
CDI-E102P500T4L | 612 | 934 | 930 | 500 | |||||
CDI-E102G500T4L | 612 | 934 | 930 | 500 | |||||
CDI-E102G630T4L | 790 | 1206 | 1200 | 630 |
